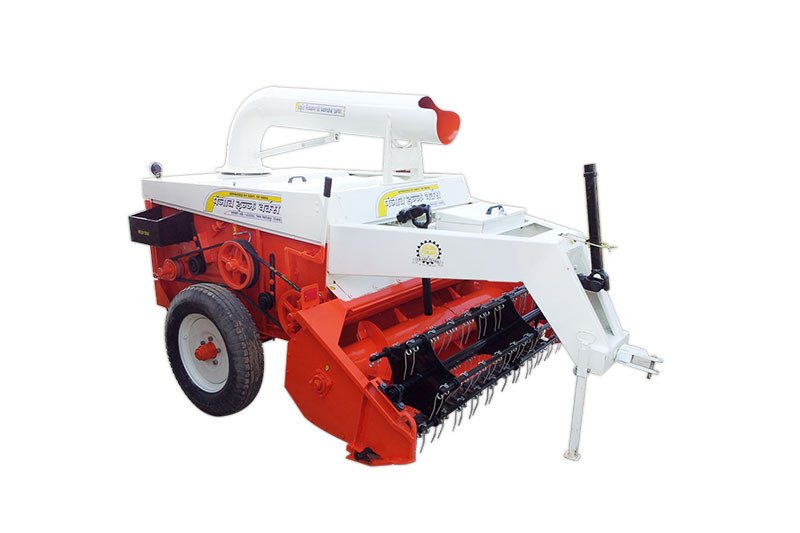

Straw Reaper
Straw Reaper
- Specially designed outer gear bearing support.
- Chassis made up of heavy iron plate.
- Specially designed straw outer for easy flow of straw.
- Stone trip to prevent stone entry.
- Easily draw able grain storage tray.
- Heavy transmission gear for less load on tractor
Note : As our policy of continuous development, specifications and performance can be changed without any prior notice.
Specifications
| Length of Reaper | 142" |
|---|---|
| Size | 56" |
| Net Size (Sendica) | 15.90 mm |
| Net Size | 12.70 mm |
| Net Size | 9.50 mm |
| No. of Finger | 14 |
| P.T.O. Speed (RPM) | 540 |
| Pully Size (Gear) | DIA 15" 3C |
| Pully Size (Thresher) | DIA 12" 3C |
| P.T.O. Speed (RPM) | 1000 |
| Pully Size (Gear) | DIA 10" 3C |
| Pully Size (Thresher) | DIA 15" 3C |
| No. of Blades in Thresher | 16 x 18 = 288 |
| No. of Jack | 3 (1 Front, 2 Rear Side) |
| Power Required | 50 HP |
| Tool Kit | 2 (Screw Driver, Spanners, Plier) |
| Fuel Consumption | 3-5 LTRS / Trolley |
| Tray Emptying System | Lever Type |
| DIA of Thresher Drum | 29" |
| Lenght of Cutter Bar | 7 Feet |
| No. of Cutting Blade | 28 |
| Weight | 1950 KG |
| Straw Recovery | Upto 92.9 % |
| Basket Blades | 42 |
| Tyre Size | 7 x 19 |
| Chopping Capacity | 2-3 Trolly Per Hour |
Note : More detailed specifications are available on request.
